YAM-20

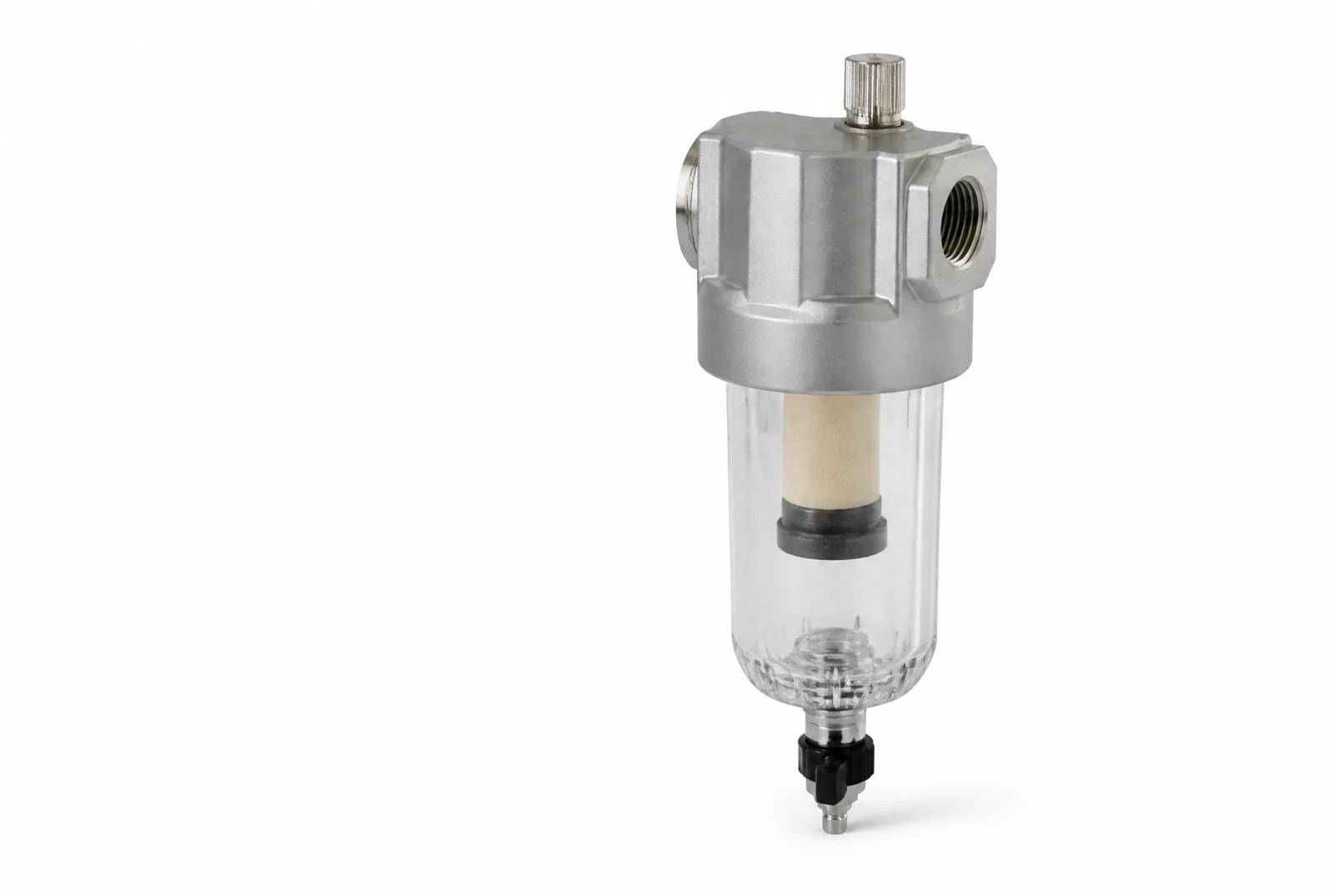

YAM-20 Oil Mist Separator
A 3/4 in oil mist separator for removing oil aerosol, water and fine particles from compressed air.
Product preview
Source image
Source product image · request a verified 3D CAD file for your confirmed configuration
Product overview
Designed for dependable machine building
The YAM-20 oil mist separator uses a multi-stage filtration structure to help protect downstream precision pneumatic components. Automatic drainage supports lower maintenance effort in continuous operation.
Technical specifications
Updated 2026-09-01| Port size | 3/4 in |
|---|---|
| Filtration | 0.3 μm |
| Max. pressure | 1.0 MPa |
| Temperature | -5 to +60 °C |
| Oil mist removal | ≥99% |
| Drain | Automatic |
Replacing an SMC or Festo part?
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
Features and applications
Key features
- +High-efficiency oil mist separation
- +0.3 μm fine filtration
- +Automatic drainage
- +Durable pressure-resistant housing
Typical applications
- +Precision air supply
- +Painting equipment
- +Clean pneumatic systems
CAD download center
Select a file format
0 / 3 formats ready to download for this model · Browse the CAD library
STEPOn request
Request fileSTEP 3D CAD Model
Universal 3D CAD format
IGESOn request
Request fileIGES 3D CAD Model
Universal 3D CAD format
PDFOn request
Request file2D Dimension Drawing
Dimension drawing
Need a format that is not listed? Include the required file format in your RFQ.
