MHC2
Factory-supplied line · CJWR
A standard angular gripper for parts that need open jaw clearance during loading and unloading.
Product overview
The MHC2 family uses angular jaw movement to provide clearance around workpieces and fixtures. It is suited to automated handling where a direct parallel gripping motion would obstruct access.
| Gripper type | Angular, two-finger gripping |
|---|---|
| Series size range | Ø10–Ø25 |
| Actuation | Pneumatic, configuration dependent |
| Mounting | Select according to application drawing |
We confirm mounting pattern, port thread, stroke and sensor groove before quoting.
Check compatibilityEngineering details
CAD download center
0 / 2 formats ready to download for this model · Browse the CAD library
STEP 3D CAD Model
3D CAD file available on request
2D Dimension Drawing
Dimension drawing available on request
Need a format that is not listed? Include the required file format in your RFQ.
Complete selection data

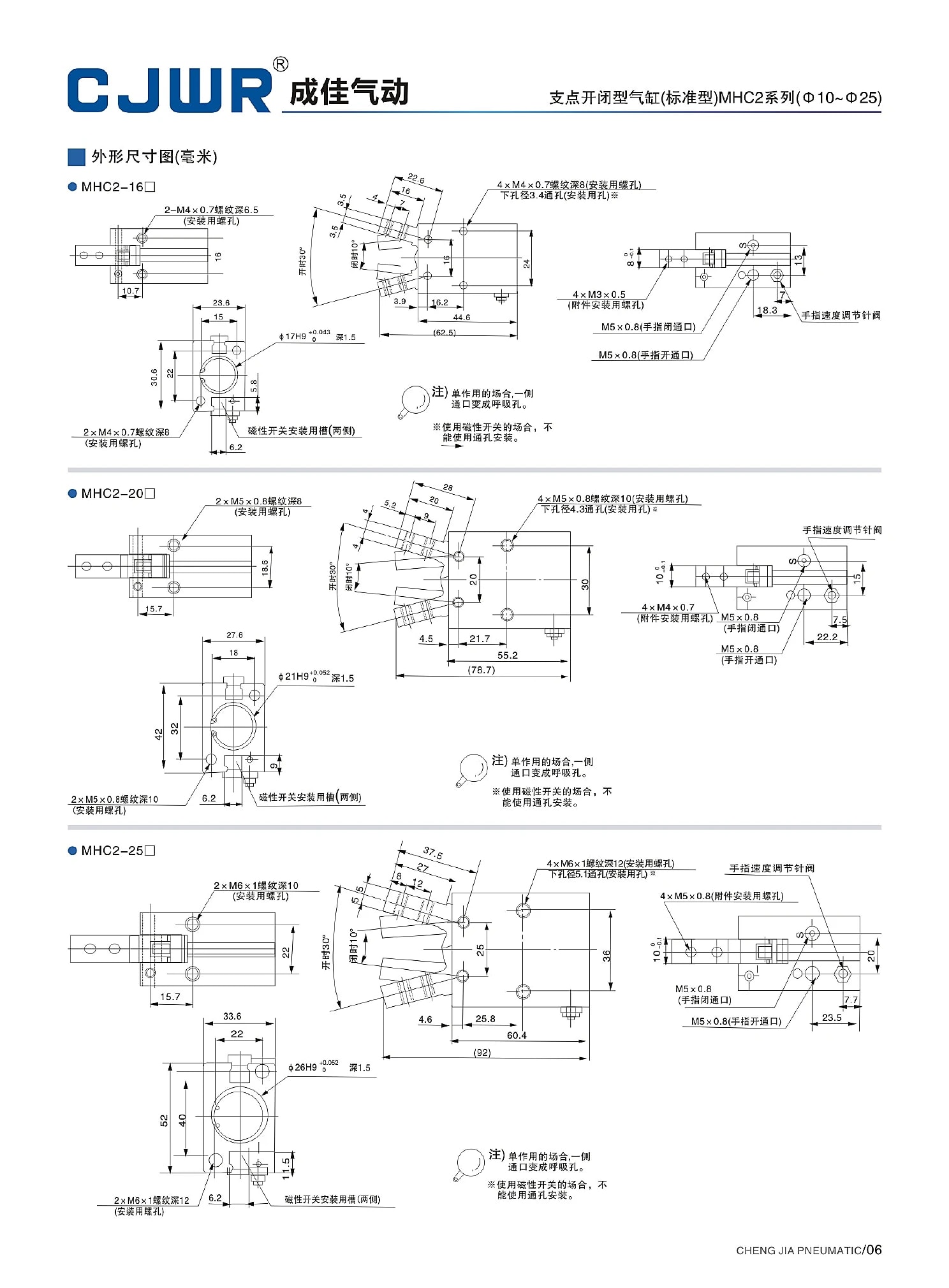

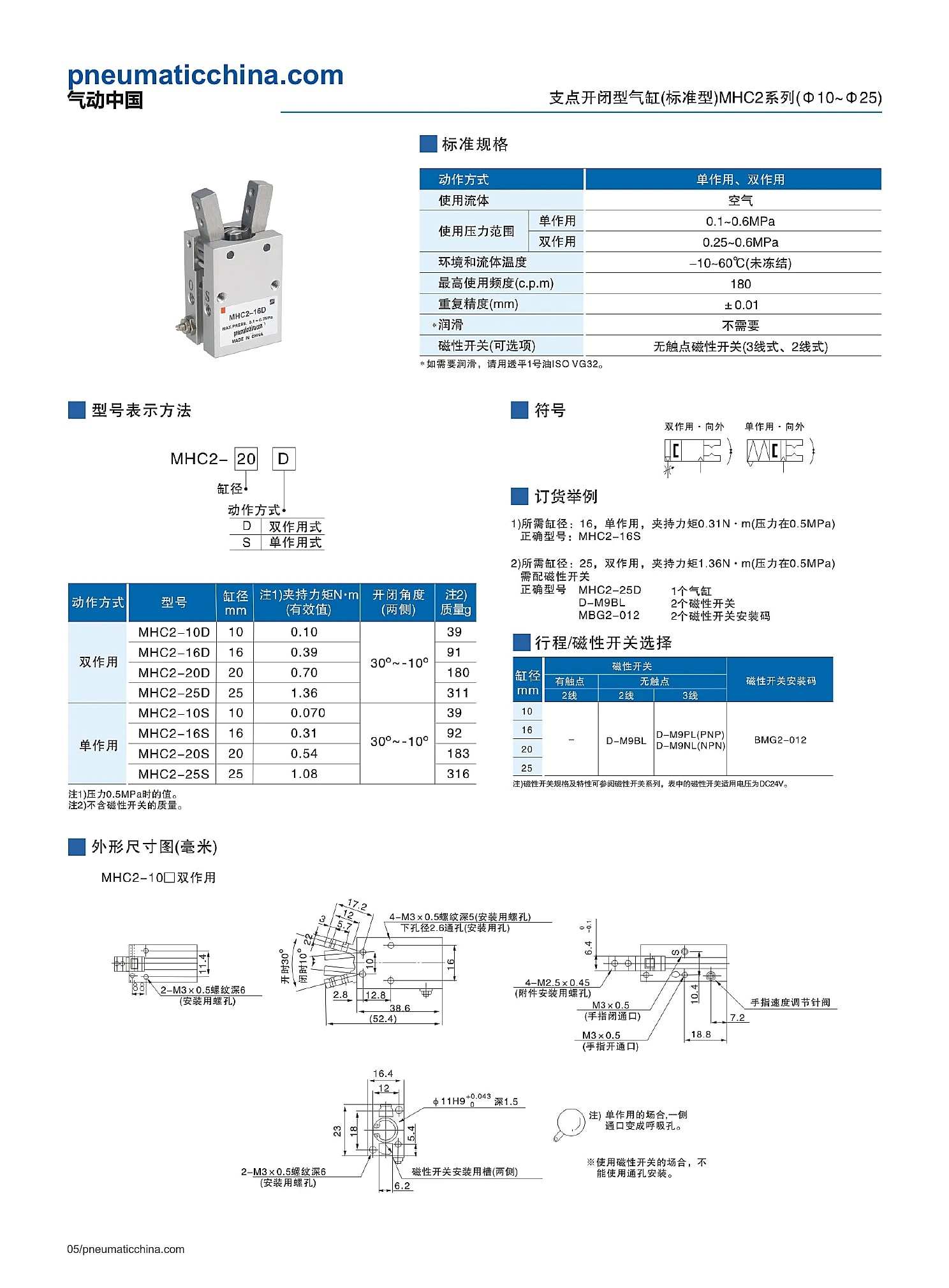

Browse the complete source selection pages for this series. Open any page to view the high-resolution original and zoom into model codes, dimensions, tables and notes.
